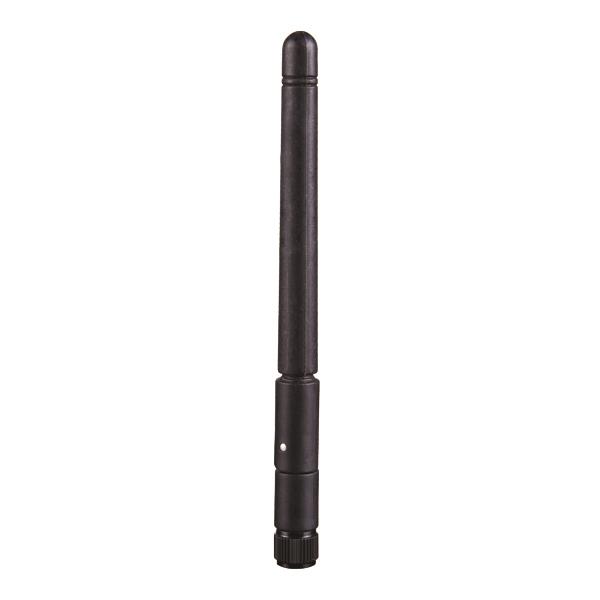

Internal GPRS Antenna

GPRS Antenna Advantage: 1. Quality advantage:100% test, 5 test process during production, First time pass rate 99%, 2. Technical advantage:high gain, low attenuation, signal receiving ability 3. 28 years experience in research and development, 30 engineers have helped us develop our current...

Send Inquiry

Products Specification:

GPRS Antenna

Advantage:

1. Quality advantage:100% test, 5 test process during production, First time pass rate 99%,

2. Technical advantage:high gain, low attenuation, signal receiving ability

3. 28 years experience in research and development, 30 engineers have helped us develop our current selection and trained our 200 production workers to ensure they stay on top of the latest technology.

Product summary:

GPRS is often described as “2.5G”, it means that this technology is between mobile communication generation 2 (2G) and generation 3 (3G).

Application:

Used to receive and transfer the GPRS signal,including frequency:GSM/CDMA/PCS/DCS/UMTS/WCDMA

Product performance:

omni-directional antenna

Component element:

PCB+ENCLOSURE+CABLE+CONNECTOR

Parameter:

Antenna	Frequency Range	900-1800MHz
	Polarization	Linear
	Gain	2dBi
	V.S.W.R	<2.0
	Impedance	50O
	PCB Dimension	104.6×15×1mm
Mechanical	Cable	RG174
	Connector	FAKRA/SMA or others
	Radome Material	ABS
	Mounting Method	Adhesive
Environmental	Operating Temperature	-40?~+85?
	Relative Humidity	Up to 95%
	Vibration	10 to 55Hz with 1.5mm amplitude 2hours
	Environmentally Friendly	ROHS Compliant
