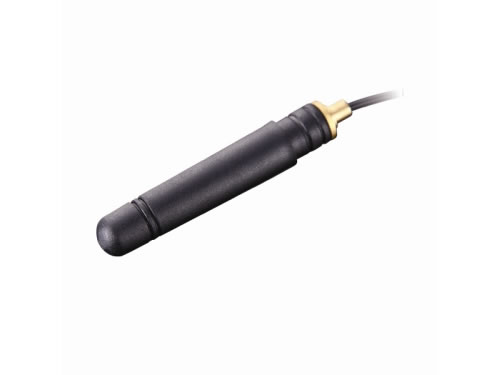

Cellular External Antenna
Description
Cellular external antenna is a kind of omni-directional cellular mobile communication antennas, which is applied to receive and transmit GPS signals. Receiving frequency includes GSM, CDMA, PCS, DCS, UMTS and WCDMA. This cell phone signal booster and antenna is composed of a PCB, enclosure, cable and connector.
Advantages
1. The cellular external antenna has long distance coverage.
2. Omni-directional high gain across all bands ensures its constant signal reception and transmission.
3. The UV and corrosion resistant housing makes this antenna suitable to be mounted in bad outdoor environment.
4. This cell phone signal booster and antenna can be utilized in remote areas or difficult environments indoors and outdoors.
Parameters of Cellular External Antenna
| Antenna | Frequency Range | 824 to 960/1710 to 2170 (MHz) |
| Polarization | Linear | |
| Gain | 2 dBi | |
| V.S.W.R | < 2.0 | |
| Impedance | 50Ω | |
| PCB Dimension | 104.6 × 15 × 1 (mm) | |
| Mechanical | Cable | RG174 |
| Connector | FAKRA/SMA or others | |
| Radome Material | ABS | |
| Mounting Method | Adhesive | |
| Environmental | Operating Temperature | Below 40℃ to 85℃ |
| Relative Humidity | Up to 95% | |
| Vibration | 10 Hz to 55 Hz with 1.5 mm Amplitude 2 Hours | |
| Environmentally Friendly | ROHS Compliant |
Attentions
1. If there are any quality problems of our cellular external antenna, you can get exchange or refund within one year and lifelong maintenance is offered after buying.
2. Our cell phone signal booster and antenna can be mounted with magnet, adhesive or screw. You can choose proper mounting method according to your installing position.
3. According to customers’ requirements, we can offer antennas with different features, such as water proof, salt spray prevention, UV resistance, and so on.
4. Please ensure that the antenna is not covered by metal plate in direction for receiving signals.
Package
Each cellular external antenna is wrapped with plastic bag and put in a carton.
Jinchang Company is a professional manufacturer of antenna. We produce GPS antennas, cellular antennas, WIFI antennas, combo antennas, cable assemblies, connectors, etc. 28 years’ experience and more than 30 R&D engineers on antenna development guarantee that our cellular external antennas lead antenna industry.
